Abstract
Ferroelectric field-effect transistors employ a ferroelectric material as a gate insulator, the polarization state of which can be detected using the channel conductance of the device. As a result, the devices are potentially of use in non-volatile memory technology, but they suffer from short retention times, which limits their wider application. Here, we report a ferroelectric semiconductor field-effect transistor in which a two-dimensional ferroelectric semiconductor, indium selenide (α-In2Se3), is used as the channel material in the device. α-In2Se3 was chosen due to its appropriate bandgap, room-temperature ferroelectricity, ability to maintain ferroelectricity down to a few atomic layers and its potential for large-area growth. A passivation method based on the atomic layer deposition of aluminium oxide (Al2O3) was developed to protect and enhance the performance of the transistors. With 15-nm-thick hafnium oxide (HfO2) as a scaled gate dielectric, the resulting devices offer high performance with a large memory window, a high on/off ratio of over 108, a maximum on current of 862 μA μm−1 and a low supply voltage.
Source
techxplore.com
Ferroelectric field-effect transistors employ a ferroelectric material as a gate insulator, the polarization state of which can be detected using the channel conductance of the device. As a result, the devices are potentially of use in non-volatile memory technology, but they suffer from short retention times, which limits their wider application. Here, we report a ferroelectric semiconductor field-effect transistor in which a two-dimensional ferroelectric semiconductor, indium selenide (α-In2Se3), is used as the channel material in the device. α-In2Se3 was chosen due to its appropriate bandgap, room-temperature ferroelectricity, ability to maintain ferroelectricity down to a few atomic layers and its potential for large-area growth. A passivation method based on the atomic layer deposition of aluminium oxide (Al2O3) was developed to protect and enhance the performance of the transistors. With 15-nm-thick hafnium oxide (HfO2) as a scaled gate dielectric, the resulting devices offer high performance with a large memory window, a high on/off ratio of over 108, a maximum on current of 862 μA μm−1 and a low supply voltage.
Source

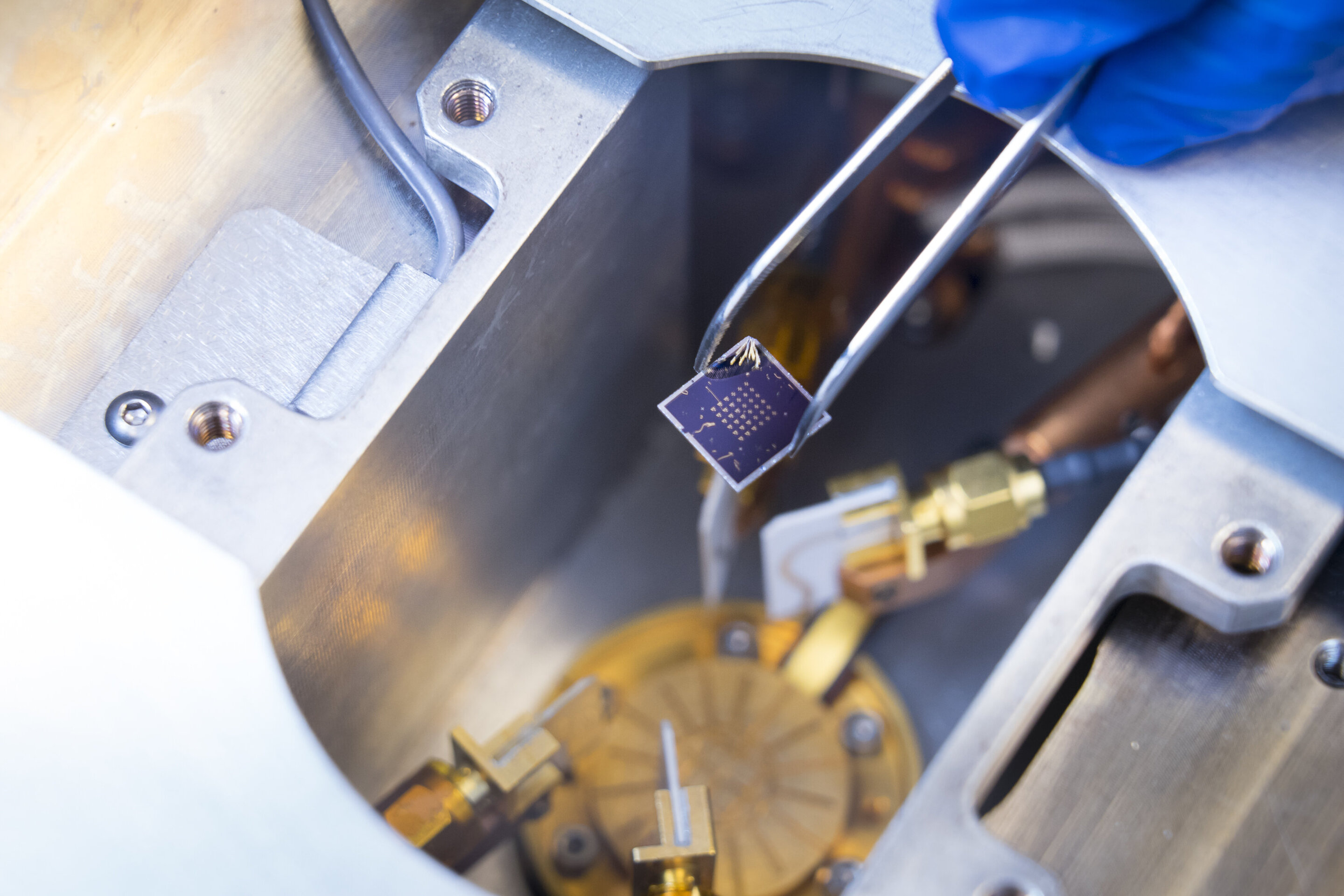

Reorganizing a computer chip: Transistors can now both process and store information
A computer chip processes and stores information using two different devices. If engineers could combine these devices into one or put them next to each other, then there would be more space on a chip, making it faster and more powerful.
